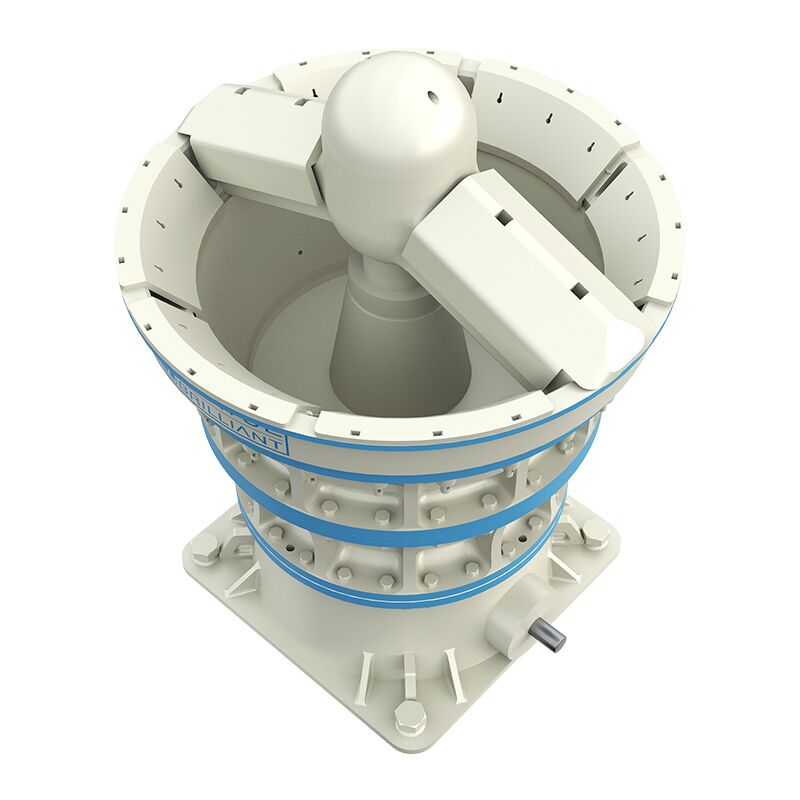

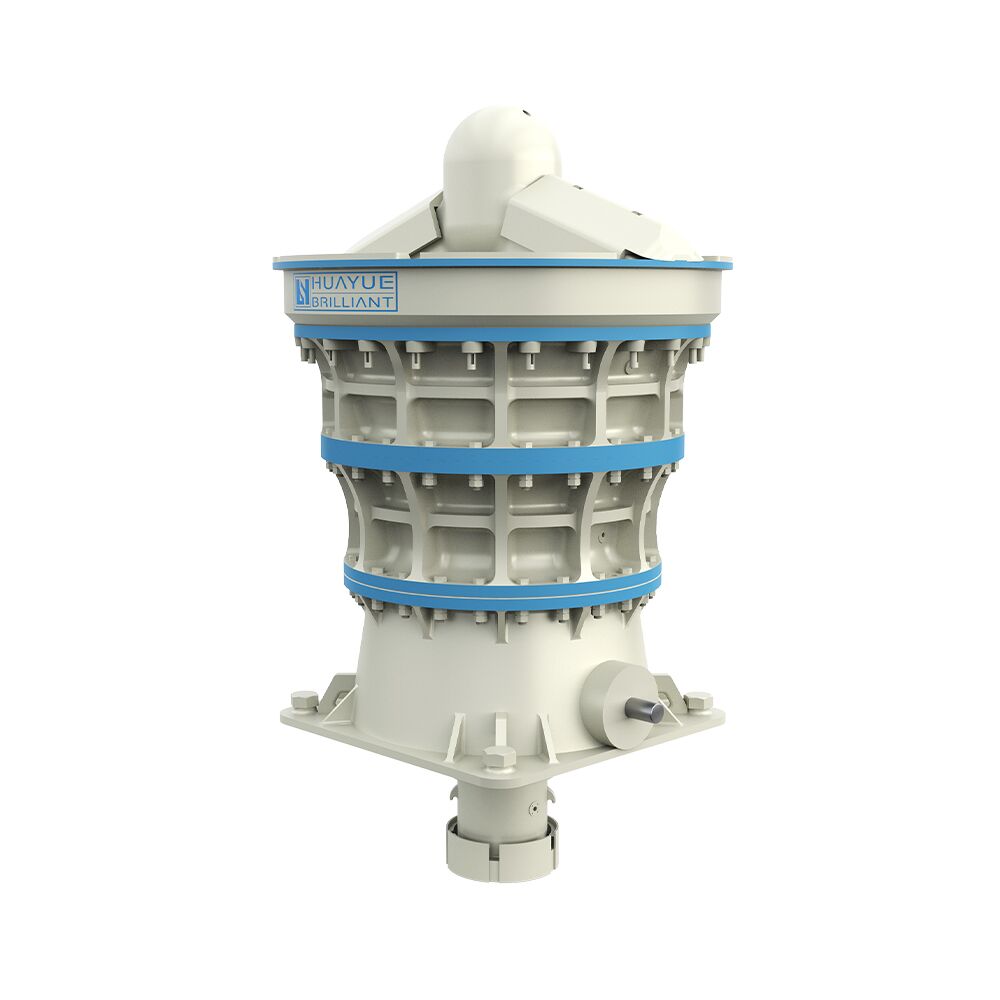

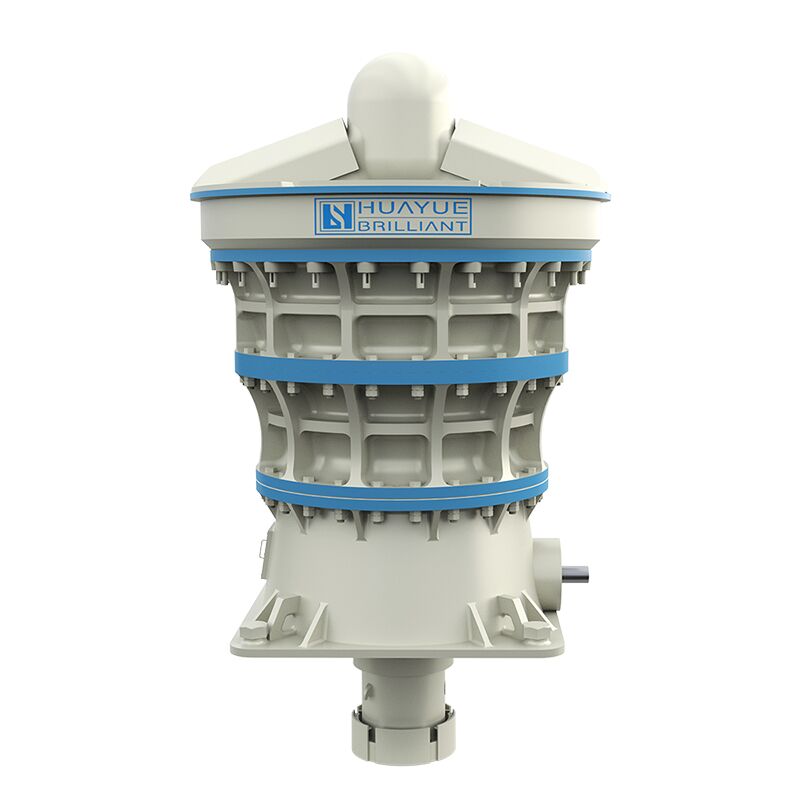

As a primary crusher, the gyratory crusher operates through continuous compressive action within its circular crushing chamber. Key advantages include high throughput capacity, reduced energy consumption per ton processed, and exceptional operational stability – making it particularly effective for processing laminated or flaky rock formations.
The crusher’s vertically aligned feed opening allows raw materials to be directly dumped from transport vehicles, eliminating the need for auxiliary feeding equipment.
As a primary crusher, the gyratory crusher operates through continuous compressive action within its circular crushing chamber. Key advantages include high throughput capacity, reduced energy consumption per ton processed, and exceptional operational stability – making it particularly effective for processing laminated or flaky rock formations.
The crusher’s vertically aligned feed opening allows raw materials to be directly dumped from transport vehicles, eliminating the need for auxiliary feeding equipment.
| Model | Weight(t) | Feed Size(mm) | Power(kW) | Max.Capacity (t/h) |
| MG 42-65 | 120 | 1066 | 450 | 5250 |
| MG 50-65 | 153 | 1270 | 450 | 6375 |
| MG 54-75 | 242 | 1370 | 600 | 7500 |
| MG 60-89 | 365 | 1525 | 750 | 12500 |
| MG 60-110 | 553 | 1525 | 1500 | 17000 |
| Capacity (t/h) | ||||||||||||
| MODEL | 152(6in) | 177 (7 in) | 203(8 in) | 203(9 in) | 254(10 in) | 305(12 in) | ||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| MG 42-65 | 2354 | 3362 | 2893 | 4133 | ||||||||
| MG 50-65 | 2414 | 3449 | 2958 | 4226 | ||||||||
| MG 54-75 | 2908 | 4154 | 3170 | 4529 | 3513 | 5018 | ||||||
| MG 60-89 | 4576 | 6538 | 5337 | 7625 | 5851 | 8359 | ||||||
| MG 60-110 | 5579 | 7970 | 7394 | 10562 | 8346 | 11923 | 8961 | 12802 | 9857 | 14082 | ||
