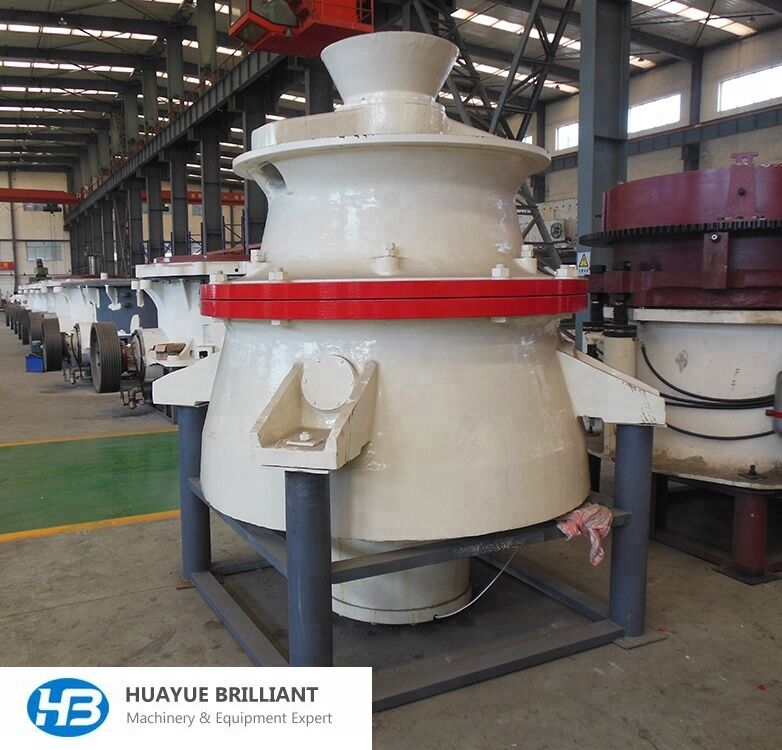

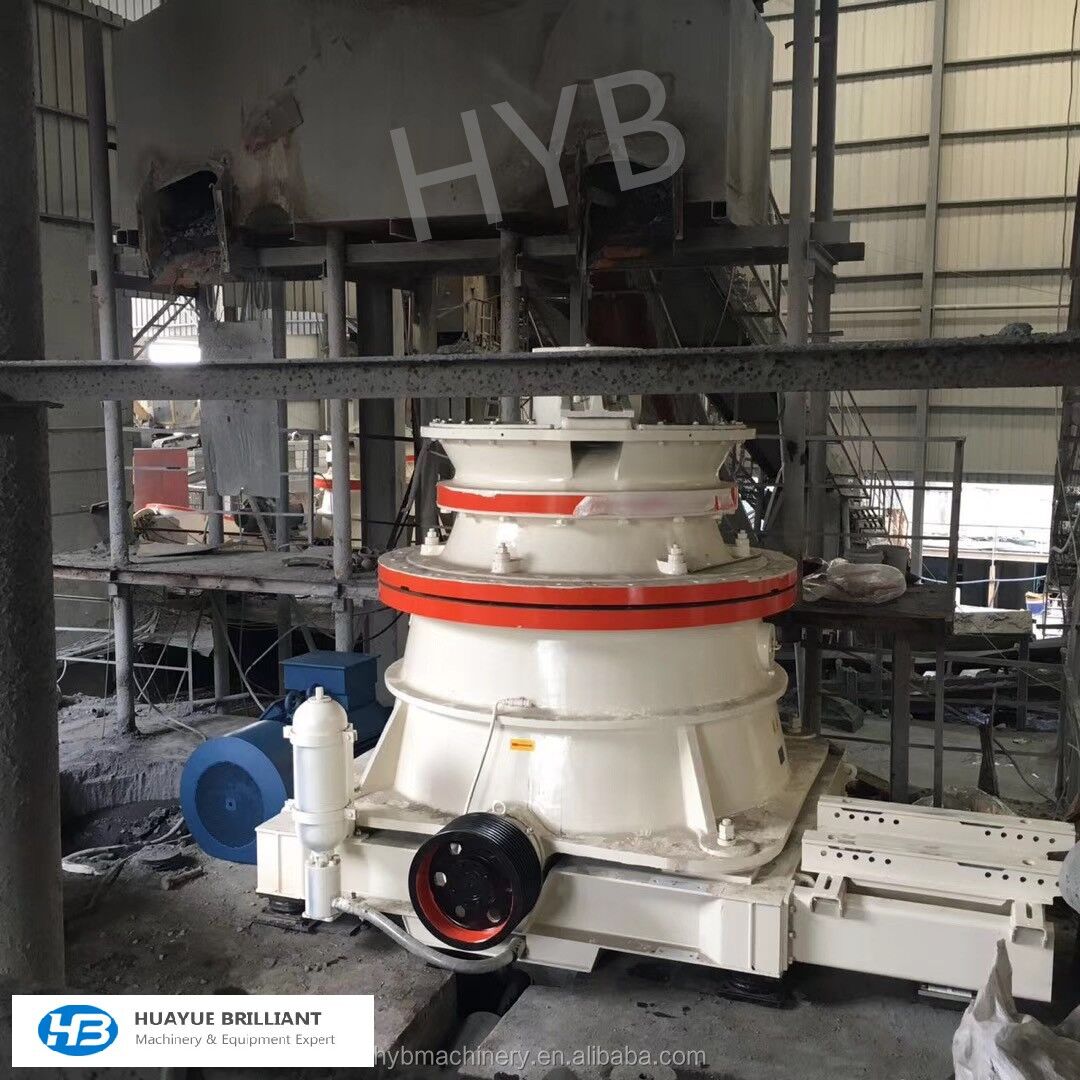

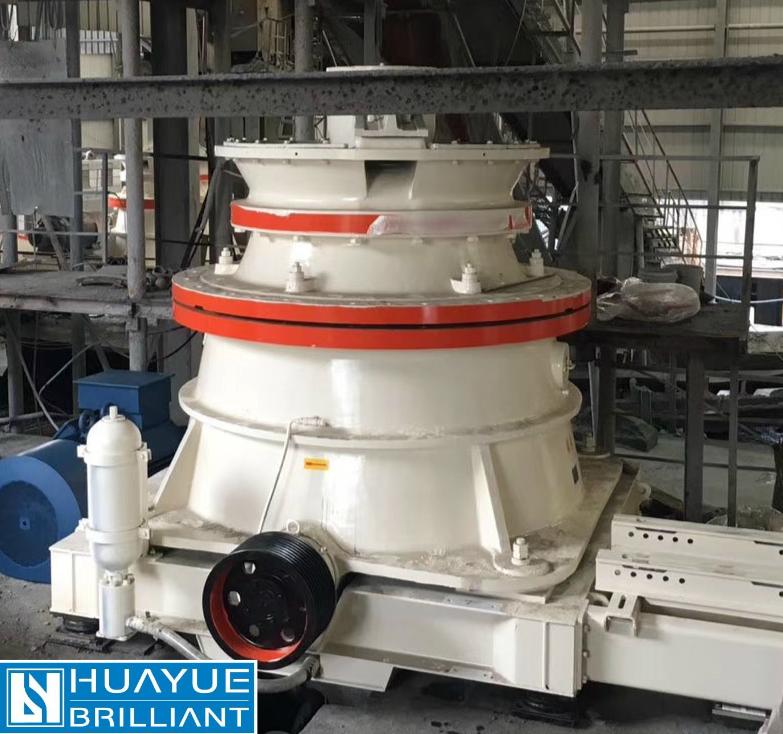

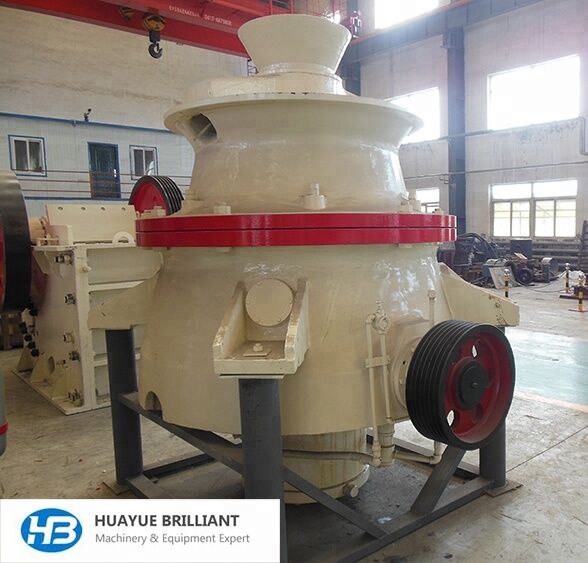

MGP Series Cone Crusher

MGP series single-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China.

Additional information

Model

MGP100, MGP100S, MGP11F, MGP11M, MGP200, MGP200S, MGP300, MGP300S, MGP500S, MGP550

Length of Stroke

16mm, 18mm, 20mm, 25mm, 30mm, 32mm, 40mm

Discharge Opening

10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 8mm

Feed Opening(mm)

100, 120, 130, 150, 180, 200, 210, 220, 40, 50, 60, 70, 80, 90

Cavity

C, EC, EC-S, EF, F, M, MF

Product Details:

Why choose MGP Series Cone Crusher?

  1. The liner is stable throughout its life, dynamic setting and adjustment, low mounting height, versatility, easy to maintain and environmental protection.
  2. MGP series cone crusher has been developed continuously, which is efficient, reliable and economical for crushing materials, and becomes the final product to meet customers’ requirements.
  3. For stone or mining industry, the requirements of high crushing equipment output, product grain type, good mobility.
  4. MGP series cone crusher can not only meet these requirements,  also can make the crushing process more smooth, achieve the full automation of the crushing process.



MGP series single-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China. It aims at the high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. MGP cone crusher features in robust casting steel frame, forged alloy main shaft, and high accurate arc gear transmission system. Combined with one suitable crushing chamber from all optional and PLC automatic control system, the MGP cone crusher could fully play its performance and advantages. It is widely used for the fine and coarse crushing of various kind of stones and minerals, which features in high crushing efficiency, and could meets different crushing requirement for our clients.

Main Features

High Production Efficiency

Scientifically design of crushing chamber, large eccentricity, high swing frequency, lamination crushing and hydraulic controlled constant crushing force ensures more stable operation, bigger passing capacity, higher production efficiency and better products shape, as well as reducing the power consumption to the least.

High Automation

PLC automatic control system can realize the functions of overload protection, tramp iron protection, discharge opening adjustment, chamber cleaning, as well as monitor oil temperature, pressure and flow, machine loading, discharge opening size, etc. so as to ensure the stable running of the machine.

Wide Adaptability

MGP cone crusher has two types: course crushing and fine crushing. Each type has various kinds of optional crushing chambers. By adjusting the eccentricity, it could adapt to different processing flow and working condition. By adjusting the rotational speed of transmission shaft, it could adjust the grading of finished products, so as to maximum the machine’s value.

Lower Operation Cost

Special designed crushing chamber, mantle, concave ring and material ensures higher utilization ratio and durable of liners, lower operation cost and minimized downtime. The positive pressure anti-dust system equipped on the machine ensures the clean of lubrication system. No extra grease seal and labor maintenance needed during operation. Most parts can be assembled and disassembled on the upper and lateral side, which makes the machine maintenance more labor-saving and time-saving.

Specification

Specifications

                                                          Capacity(t/h)
      Discharge Opening 8mm 10mm 15mm 20mm 25mm 30mm 35mm
MGP100 Length of Stroke 16mm 40-50 40-55 60-70 80-90 85-95
20mm 50-55 50-60 70-80 95-105
25mm 55-65 75-90 105-120
MGP11F Length of Stroke 20mm 80-100 85-105 105-125 120-145 150-170 (170-190)
25mm 100-120 130-150 160-180 180-210
30mm 160-180 190-210 (210-230)
MGP200 Length of Stroke 18mm 60-70 70-90 80-105 100-125 135-150 160-175 185-200
25mm 90-110 110-130 130-155 160-180 185-210
32mm 140-160 170-190 190-220
40mm 200-220 220-240
MGP300 Length of Stroke 25mm 100-120 110-130 135-155 160-180 190-210 210-235 240-260
32mm 110-130 120-150 165-195 195-225 230-260 265-295 300-330
40mm 150-170 205-235 245-275 290-320 325-355
       Discharge Opening 15mm 20mm 25mm 30mm 35mm 40mm 45mm
MGP11M Length of Stroke 20mm 105-125 120-145 150-170 170-190 180-200 200-220 220-250
25mm 160-180 180-210 200-230 220-250 250-280 280-310
30mm 190-210 210-230 240-270 270-310 300-340 330-360
                                                           Capacity(t/h)
Discharge Opening 10mm 15mm 20mm 25mm 30mm 35mm 40mm
MGP550 Length of Stroke 25mm 140-160 160-180 180-210 240-260 270-290 310-330 350-370
32mm 230-250 270-290 310-330 340-370 380-410 430-450
40mm 290-310 320-340 380-410 430-460 480-510
Discharge Opening 20mm 25mm 30mm 35mm 40mm 45mm 50mm
MGP100S Length of Stroke 16mm 80-90 105-115 120-130 135-145 145-165 155-175
20mm 120-130 145-155 160-180 170-200 185-215
25mm 185-195 200-220 210-230
MGP200S Length of Stroke 18mm 110-140 140-170 160-190 180-210 200-230 230-260
25mm 170-220 190-240 210-260 230-280
32mm 230-280 270-320 280-350
MGP300S Length of Stroke 18mm 170-190 170-210 190-230 210-255 235-275 255-295
25mm 220-270 255-315 290-345 320-350 330-350
32mm 360-400 380-420 400-440
40mm 450-500 480-530
Discharge Opening 10mm 15mm 20mm 25mm 30mm 35mm 40mm
MGP500S Length of Stroke 18mm 300-350 320-375 375-425 400-450 425-475 450-500 500-550
25mm 500-550 550-600 600-650 650-700 700-750 750-800
32mm 650-700 700-750 750-800 825-875 900-950
40mm 900-950 975-1050

Feed Opening

Cavity MGP100 MGP200 MGP11F MGP11M MGP300 MGP550 MGP100S MGP200S MGP300S MGP500S
EF 40mm 40mm 40mm 40mm 50mm
F 50mm 70mm 80mm 60mm 90mm
MF 100mm 100mm 130mm
M 130mm 130mm 120mm 130mm 180mm 200mm
C 150mm 200mm 180mm 180mm 220mm 250mm 250mm 280mm 380mm
EC 210mm 220mm 260mm 280mm 330mm 380mm 500mm
EC-S 300mm
