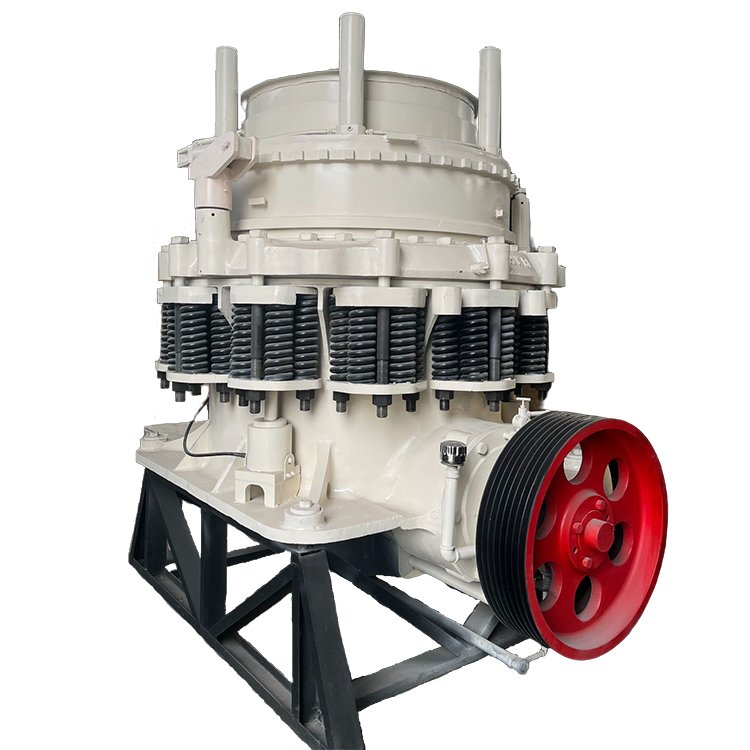

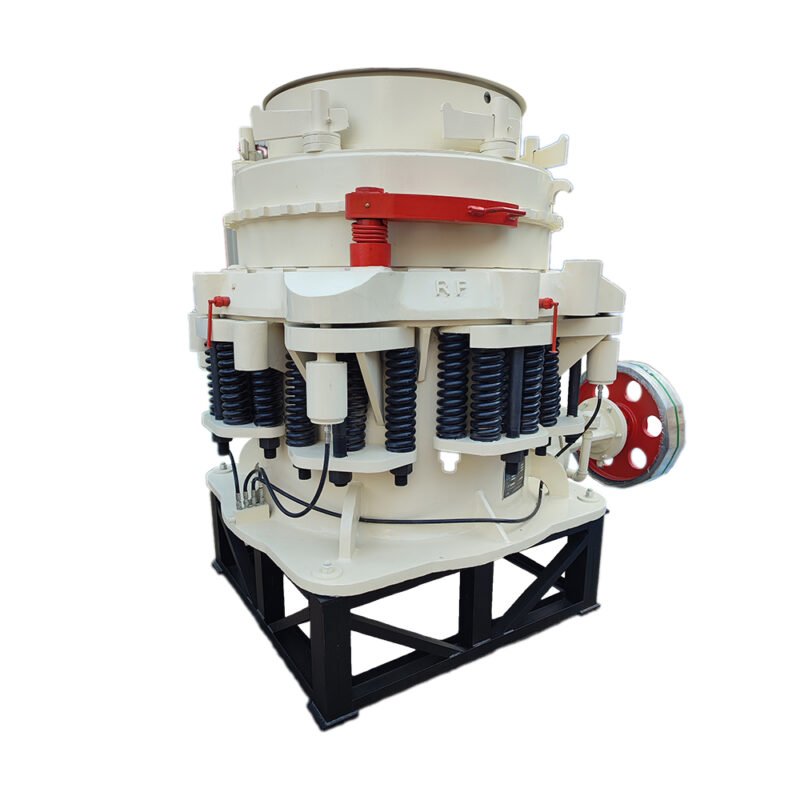

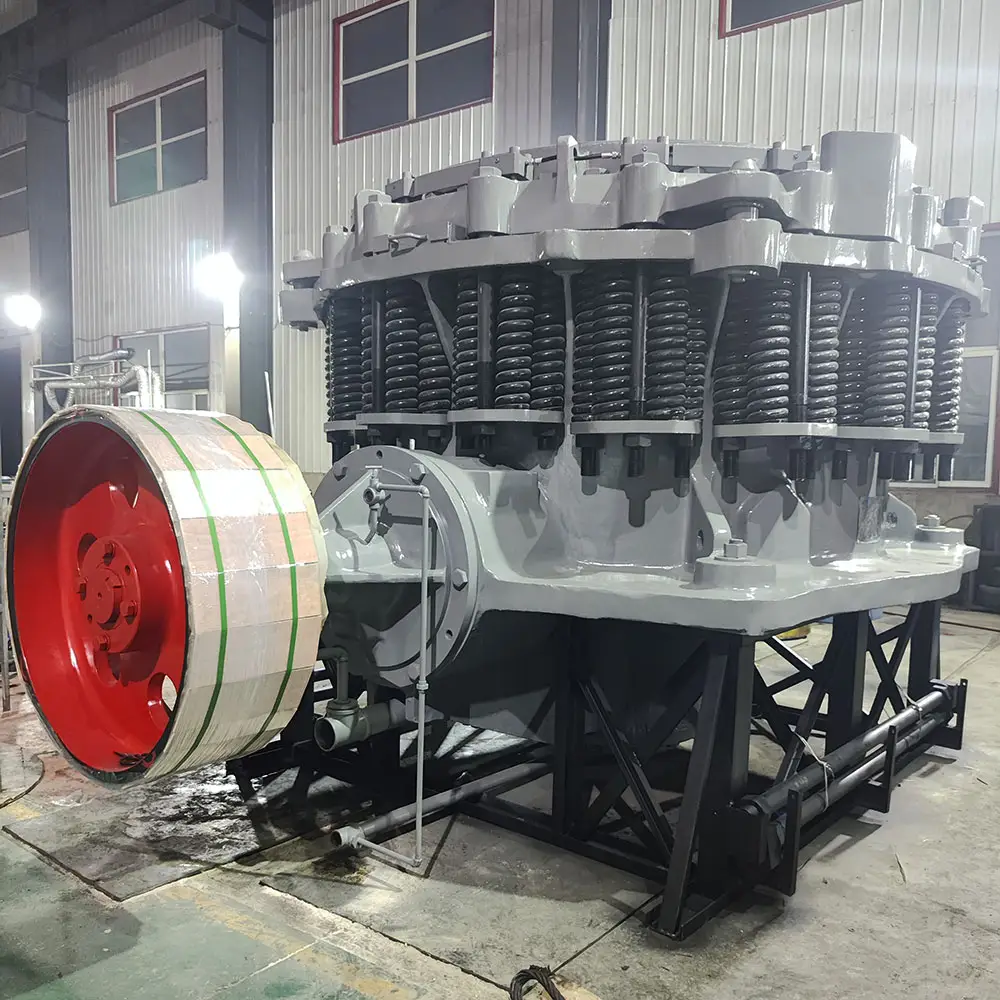

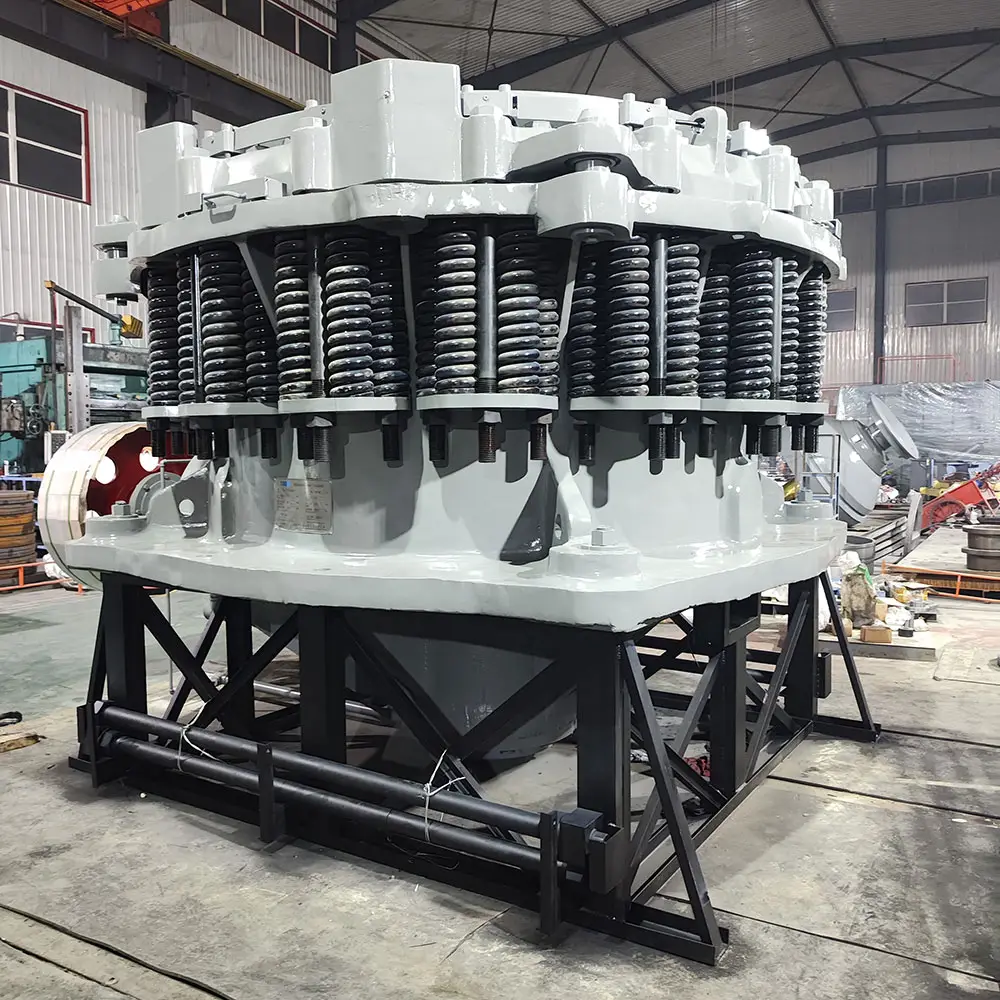

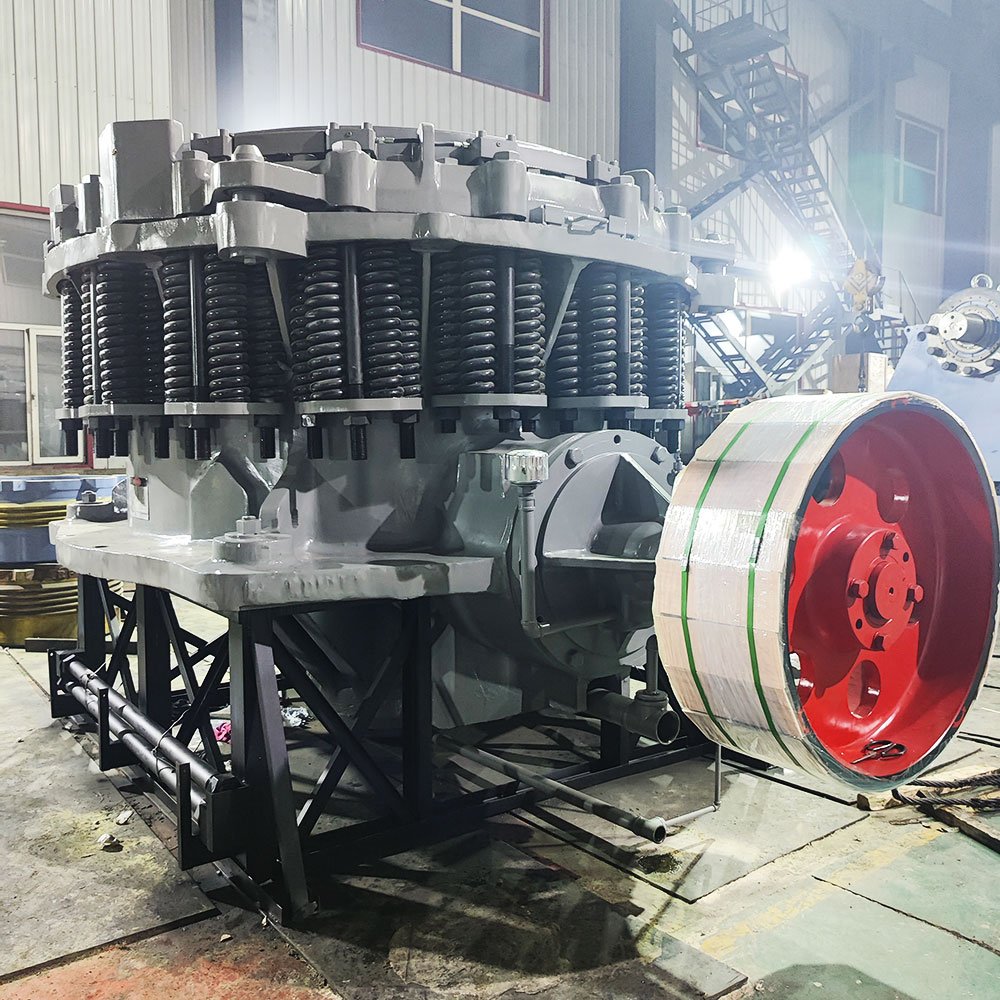

Symons 7FT Cone Crusher

Features

1. Unequaled output and uniform product throughout a wide range of capacities;
2. High working efficiency, greater crushing force;
3. Largest head displacement provides greater production capacity;
4. Long lasting bearing with stand crushing loads and severe environmental conditions;
5. Hydraulic controls providing fast setting changes and simply clearing;
6. Long working life, low operating and maintenance costs;
7. All parts can be exchanged with Original Brand Symons cone crusher.

Application

1. 5 1/2FT cone crusher are widely applied in metallurgy, construction, road building, chemical and phosphatic industry.
2. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grit stone, etc.
3. Cavity type of the crushing is decided by the application of the ores.
4. Standard type is applicable to medium crushing, middle type is applicable to fine crushing and short-head type is applicable to super fine crushing.

5.

Working Principle

1. When the Mine barite 5 1/2FT cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling.
2. The transmission shaft and the conical part of cone crusher swing under the force from the eccentric bushing, which makes the crushing wall of the 5 1/2FT cone crusher close to the pierced mortar wall at intervals.
3. Then, the ores will be impacted, squeezed and bent constantly in the crushing chamber.
4. At last, the whole ore crushing process is finished.
5. The perfect combination of high-performance crushing chamber and high crushing frequency improves the handling ability of cone crusher to a greater degree.


Main Feature

1. Higher capacity and less wear costs.
2. Wide range of application suitability.
3. Spring cone crusher machine is Easy to maintain, reduce the downtime and maintenance costs.
4. Stable running performance and easy operation.
5. Stable bevel wheel transmission device.
6. Balanced runout rotation ensures best capacity.
7. Proper operation, continuously load until the machine shut down scheduled.
