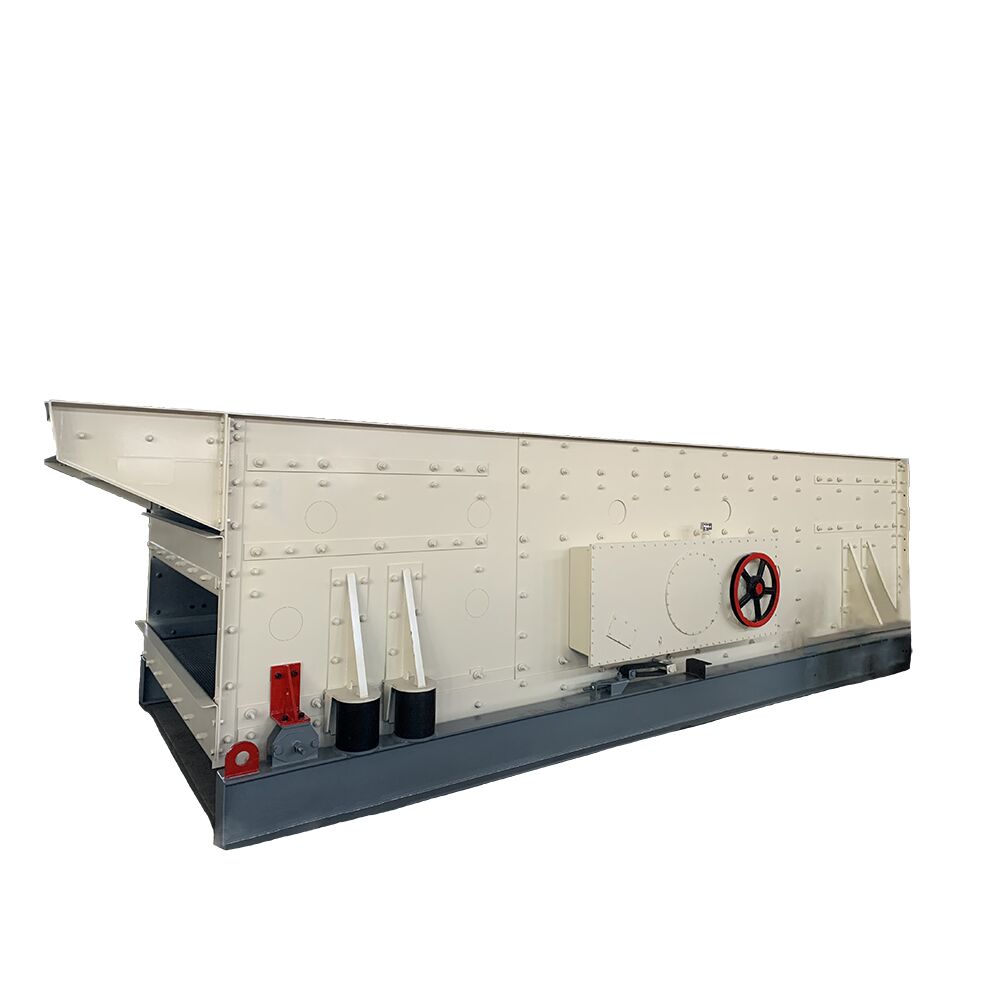

TY Horizontal Screen

TY horizontal screen are elliptical motion track vibrating screen, suitable for large, medium and small size materials dry or wet screening. It can adjust the vibration times, amplitude and vibration direction angle to meet the requirements of different process conditions and materials for screening effect. The large exciting force and elliptical motion trajectory greatly improve the sieve processing capacity and the sieve performance. Shorter fuselage design and horizontal installation form can greatly reduce the equipment installation height, especially suitable for mobile crushing and screening machine group.

Features

1. Advanced structure, maximum strength frame, heavy eccentric shaft enhances the screen stroke;
2. Its screen deck is available in double, triple decks;
3. Can use steel-plate screen cloth, steel-wire weave screen cloth, rubber plate cloth and polyurethane screen cloth;
4. It is easily installed on portable plant or firm foundation with easy maintenance.

Working Principle

Vibrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine’s feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.

Specification

MODEL	Deck Area(mm)	Mash Size(mm)	Deck	Feeding(mm)	Capacity(t/h)		Weight(kg)
2TY	1548×4890	5-100	2	≤254	90-450	22	6500
3TY	1562×4890	5-100	3	≤254	90-450	22	7650
2TY	1948×4890	5-120	2	≤254	100-680	22	7230
3TY	1948×4890	5-120	3	≤254	100-680	30	8700
2TY	1960×6100	5-120	2	≤254	200-800	30	7810



---
