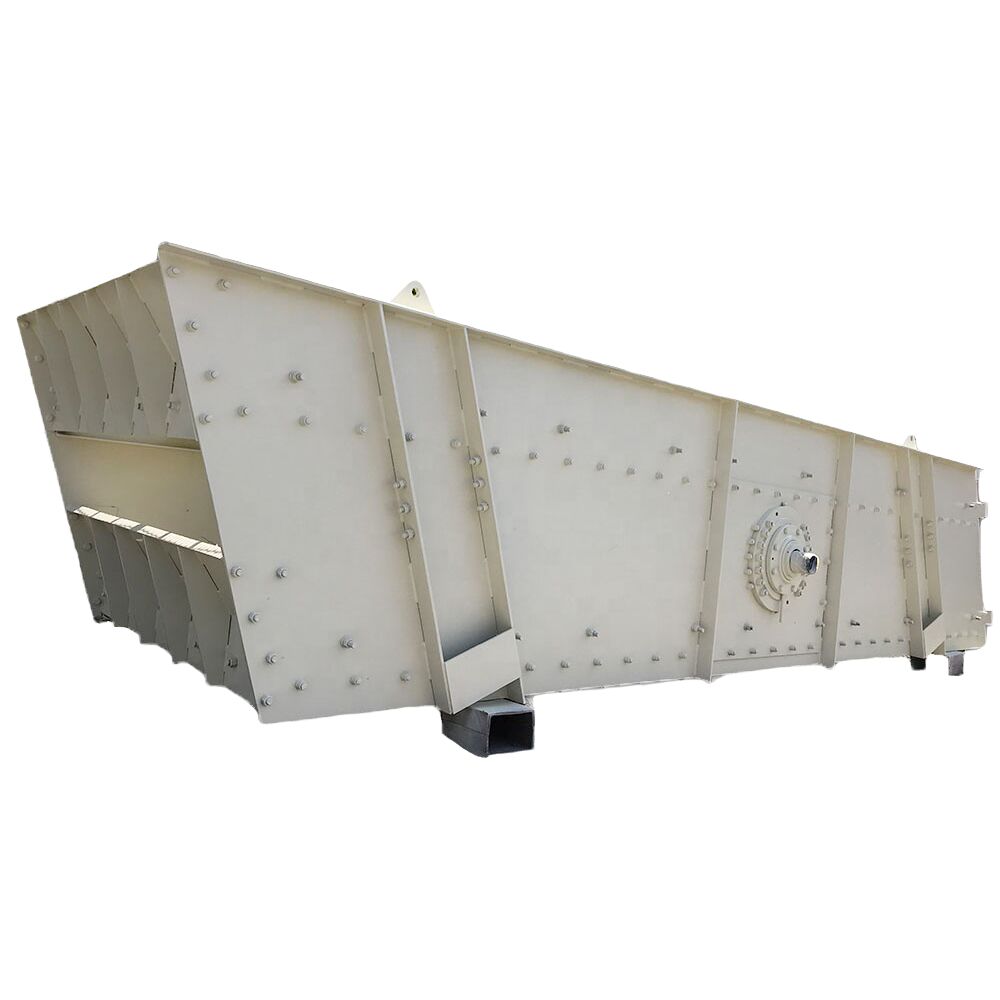

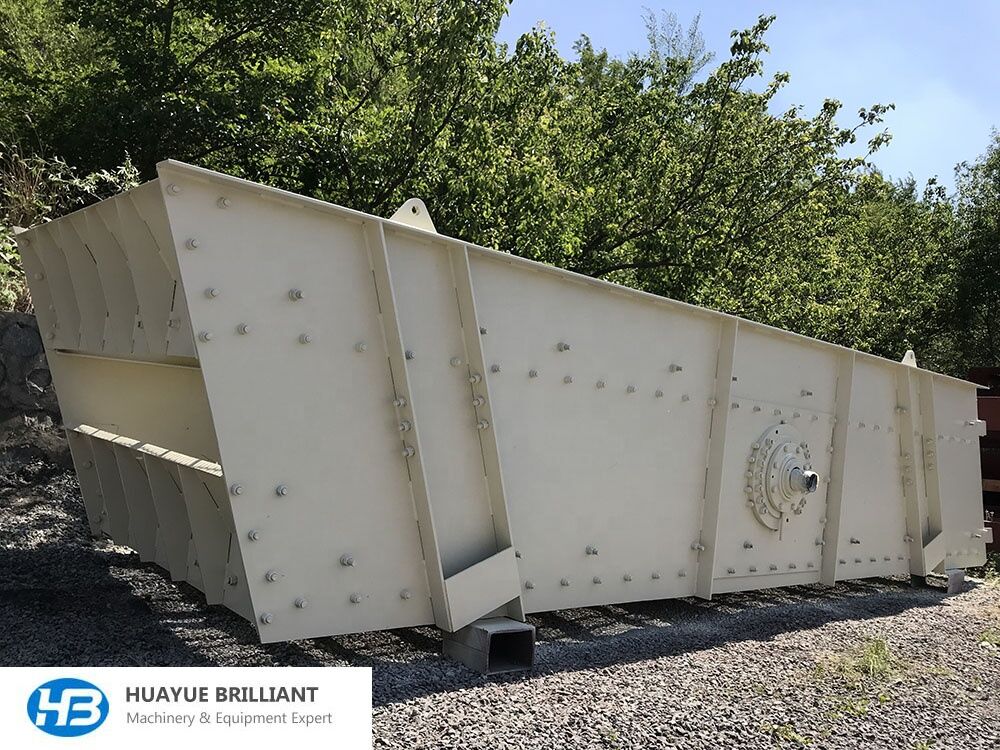

YA Inclined Vibrating Screen

YA inclined vibratory screens are designed for consistent performance in heavy-duty applications.

Additional information

Model

1236, 1548, 1860, 2160, 2460

Deck

1, 2, 3, 4

Capacity(t/h)

120-400, 200-590, 245-820, 350-1200, 420-1360

Deck Area(mm)

1200×3600, 1500×4800, 1800×6000, 2100×6000, 2400×6000

Mash Size(mm)

5-50, 5-80

Feeding(mm)

≤200

Product Details:

YA inclined vibratory screens are designed for consistent performance in heavy-duty applications. They are well-suited for high-tonnage operations such as coal and minerals processing, or large-scale aggregates production. They can screen dry material or, with the addition of water spray pipes, handle wet or dry material and thoroughly rinse it while screening. This vibratory screen is characteristic of advanced structure, maximum strength frame, heavy eccentric shaft enhances the screen stroke. It is easily installed on portable plant or firm foundation with easy maintenance. YA inclined vibratory screens are available in single, double, or triple decks. They can use polygamy bar screen cloth, steel-plate screen cloth, steel-wire weave screen cloth, rubber plate cloth, and polyurethane screen cloth. The Slope of YA screen can be chosen between 15°-25°, the standard slope of screen is 20 degree.

The screens are of usual duty and heavy duty models to meet various sizing operations.

Features

  1. Advanced structure, maximum strength frame, heavy eccentric shaft enhances the screen stroke;

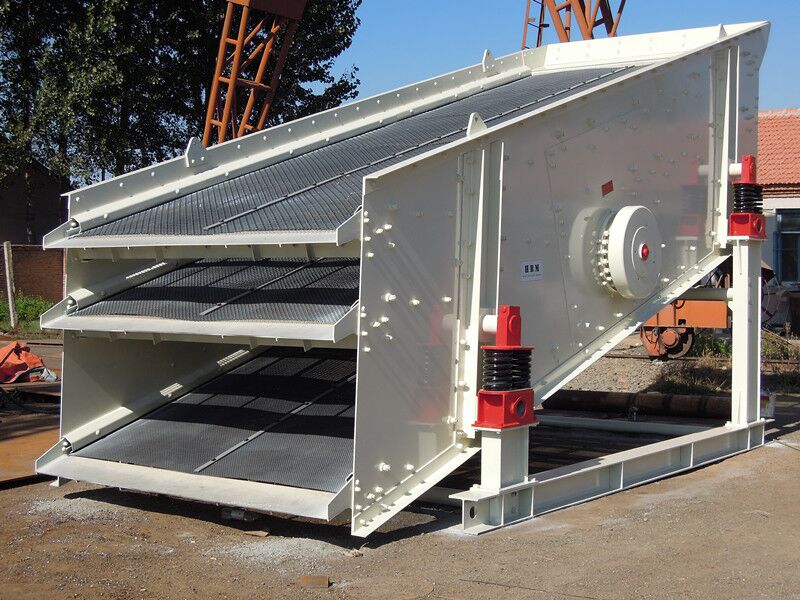

  2. Its screen deck is available in single, double, triple and four decks;
  3. Can use steel-plate screen cloth, steel-wire weave screen cloth, rubber plate cloth and polyurethane screen cloth;
  4. The slope of screen can be chosen between 15 degree and 25 degree, the standard slope of screen is 20 degree;
  5. It is easily installed on portable plant or firm foundation with easy maintenance.

Working Principle

Vibrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine’s feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.

Specification



MODEL Deck Area(mm) Mash Size(mm) Deck Feeding(mm) Capacity(t/h) Power(kW) Weight(kg)
YA1236 1200×3600 5-50 1 ≤200 120-400 7.5 4675
2YA1236 1200×3600 5-50 2 ≤200 120-400 11 4850
3YA1236 1200×3600 5-50 3 ≤200 120-400 11 5700
4YA1236 1200×3600 5-50 4 ≤200 120-400 11 5900
YA1548 1500×4800 5-80 1 ≤200 200-590 11 5800
2YA1548 1500×4800 5-80 2 ≤200 200-590 11 6050
3YA1548 1500×4800 5-80 3 ≤200 200-590 11 6300
4YA1548 1500×4800 5-80 4 ≤200 200-590 15 6800
YA1860 1800×6000 5-80 1 ≤200 245-820 11 8800
2YA1860 1800×6000 5-80 2 ≤200 245-820 11 9500
3YA1860 1800×6000 5-80 3 ≤200 245-820 18.5 11500
4YA1860 1800×6000 5-80 4 ≤200 245-820 18.5 13500
YA2160 2100×6000 5-80 1 ≤200 350-1200 15 9900
2YA2160 2100×6000 5-80 2 ≤200 350-1200 15 11250
3YA2160 2100×6000 5-80 3 ≤200 350-1200 22 13580
4YA2160 2100×6000 5-80 4 ≤200 350-1200 22 14500
YA2460 2400×6000 5-80 1 ≤200 420-1360 18.5 12200
2YA2460 2400×6000 5-80 2 ≤200 420-1360 22 13500
3YA2460 2400×6000 5-80 3 ≤200 420-1360 22 13950
4YA2460 2400×6000 5-80 4 ≤200 420-1360 30 15000
